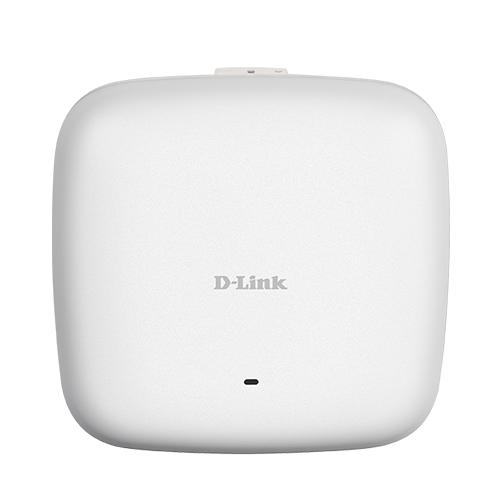

D-LINK DAP-2680

Thương hiệu:

Mã SKU:

Bảo hành:

Mô tả D-link DAP-2680: Wireless AC1750 Dual-band Gigabit PoE Access Point (2.4GHz: 450Mbps & 5GHz: 1300Mbps; 3.6dBi internal antenna for 2.4GHz, 4.2dBi internal antenna for 5GHz, 802.3at PoE+, PoE injector is NOT included) Supports CWM (Central WiFiManager) & AP Array, H/W: A1. Power Adapter is NOT INCLUDED

Chính sách

8,760,000 ₫

DAP-2680 AC1750 Wave 2 Dual‑Band WI-FI PoE Access Point

  •  802.11ac Wave 2 wireless, up to 1.75 Gbps
  •  MU-MIMO with beamforming
  •  Band steering
  • Gigabit PoE-capable LAN port
  •  AP Array utility support
  • Free D-Link Central WiFiManager

Specifications

Device Interfaces • IEEE 802.11a/b/g/n/ac Wave 2 wireless1 interface • 1 x Gigabit PoE-capable LAN port
Standards • IEEE 802.11a/b/g/n/ac1
• IEEE 802.3i/u/ab		 • IEEE 802.3az Energy-Efficient Ethernet (EEE)
• IEEE 802.3at Power over Ethernet
Antennas • 3 x internal dual-band antennas
• 3.6 dBi at 2.4 GHz
• 4.2 dBi at 5 GHz
Operating Frequency • 2.4 GHz band: 2.4 to 2.4835 GHz • 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
Maximum Output Power • 26.5 dBm for 2.4 GHz • 26.5 dBm for 5 GHz
Data Signal Rate • 2.4 GHz
• Up to 450 Mbps		 • 5 GHz
• Up to 1300 Mbps
Security • WPA-Personal
• WPA-Enterprise
• WPA2-Personal
• WPA2-Enterprise
• WEP 64/128-bit encryption		 • SSID broadcast disable
• MAC address access control
• Network Access Protection (NAP)
• Internal RADIUS server
Network Management • Telnet
• Secure Telnet (SSH)
• Web (HTTP)
• Secure Socket Layer (SSL)
LEDs • Power/status
Dimensions • 190 x 190 x 44.8 mm (7.48 x 7.48 x 1.76 in)
Weight • 580 g (1.28 lbs) without mounting base • 636.5 g (1.40 lbs) with mounting base
Power Supply • External power adapter: 12 V/2 A
• IEEE 802.3at PoE
Maximum Power Consumption • 17.53 W
Temperature • Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)
Humidity • Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Meantime Between Failure (MTBF) • > 30,000 hours
Certifications • FCC
• CE		  • UL
